Brand Name : | Huayang |
Model Number : | R-DHW |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 20 sets/month |
Delivery Time : | 30 days |
1. Product description

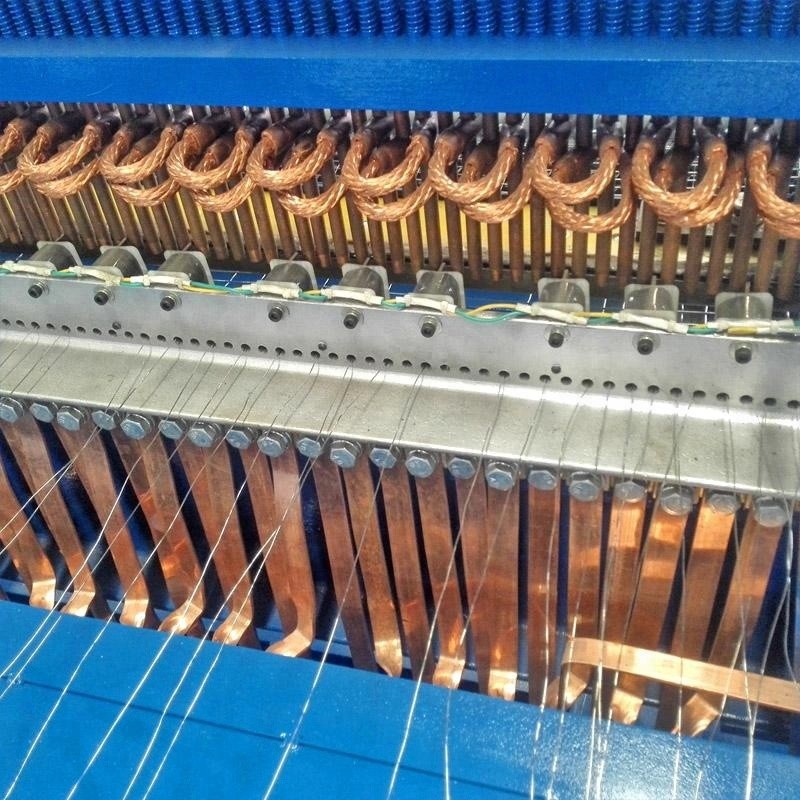

Automatic two meter width roll mesh welding machine is used for
making wire mesh. The finished products are rolled mesh. This
machine is full automatic to feeding cross wire and line wires. Raw
material: low-carbon steel wire, galvanizing wire or stainless
steel wire. The machine with low noise, stable working, easy to
operation feature .
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW2 | 2m | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW2 | 2m | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW2 | 2m | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW2 | 2m | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW2 | 2m | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW2 | 2m | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW2 | 2m | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
The automatic two meter width roll mesh welding machine is used for
the production of Industrial mesh and wire fence. The automatic two
meter width roll mesh welding machine are used for the production
of dimensionally accurate meshwork for a wide variety of
applications. Wire mesh may be used to produce shop, exhibition-
and warehouse equipment as well as trays for domestic and overseas
appliances.
4. Advantages
a. It installs 8-level adjustable welding transformers to suit
different wire diameters.
b. Both longitude wire and weft wire can be fed from wire coils
automatically.
c. The mesh length can be set on the counter.
d. The electric current, line and weft opening are adjustable.
e. It has adjustable middle cutter to cut mesh in different size.
![]() |
