1. Product description

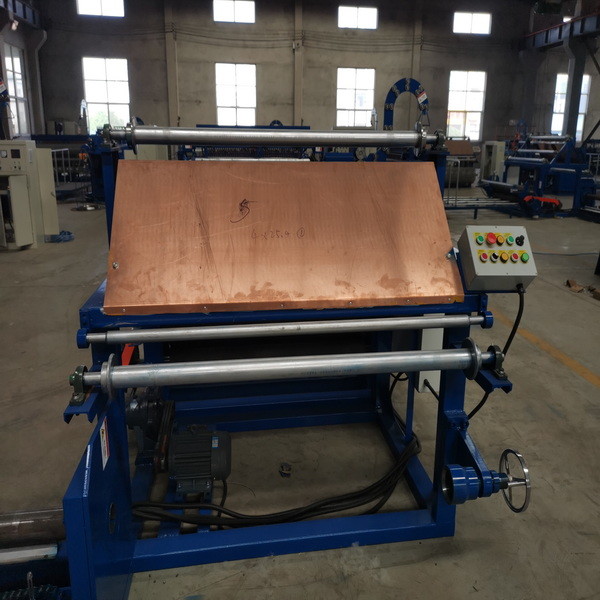

Galvanized Wire Diameter 0.8-1.6mm Fence Mesh Welding Machine is
used for making wire mesh. The cold-rolling line and the mesh
welding line complement each other to form an integrated and highly
efficient production solution. The integration means that the cross
wire from the cold-rolling line is fed to the mesh welding line
without interruption.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Galvanized Wire Diameter 0.8-1.6mm Fence Mesh Welding Machine is the most widely used Welded wire mesh, also known as external wall insulation wire
mesh, galvanized wire mesh, galvanized welded wire mesh ,
construction mesh, external wall insulation mesh, decorative mesh,
anti- Split net. It is made of high-quality stainless steel wire,
which is more resistant to acid, alkali, welding, beauty and
versatility.
4. Advantages
a. It has adjustable middle cutter to cut mesh in different size.
b. It installs 8-level adjustable welding transformers to suit
different wire diameters.
c. High stability ,low noise, automatically straightening,
automatically feeding wire .
![]() |
