Brand Name : | Huayang |
Model Number : | R-DHW |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 20 sets/month |
Delivery Time : | 30 days |
1. Product description

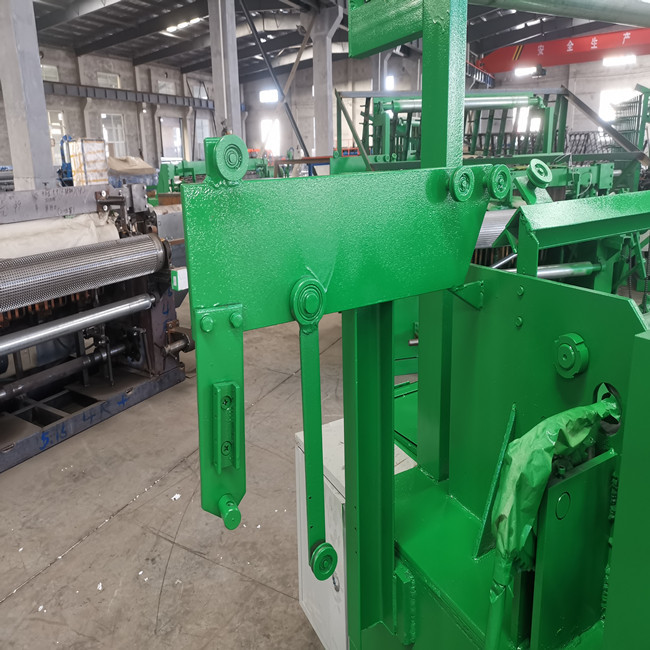

Used For Railway Fencing Fence Mesh Welding Machine is used for
making wire mesh. This machine adopts PLC control technique, both
separate-phases welding and welding time composed of digital and
integrated electric circuit, more intelligent and rational, once
pressing, and separate welding.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Used For Railway Fencing Fence Mesh Welding Machine is extensively used in the fields of industry , agriculture, farming,
breeding, construction, transport, mining and other areas. Machines
protective shelter, animal and livestock fence, landscaped
fence,retaining Window column, crossing fences, poultry cages, egg
baskets, food basket, wastebasket and decoration.
4. Advantages
a. Both longitude wire and cross wire can be fed from wire coils
automatically.
b. The welding head is made of chromium-zirconium copper, with good
electrical conductivity, hard material and abrasion resistance.
c. High stability ,low noise, automatically straightening,
automatically feeding wire .
![]() |
