Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire

    Buy cheap Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire from wholesalers

    Buy cheap Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire from wholesalers
    • Buy cheap Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire from wholesalers

    Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire

    Ask Lasest Price
    Brand Name : Huayang
    Model Number : R-DHW
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Dia 7mm Residence District CNC Spot Welding Machine Rebar Galvanized Wire

    Galvanized Wire Diameter Rebar 7mm CNC Spot Welding Machine

    1. Product description

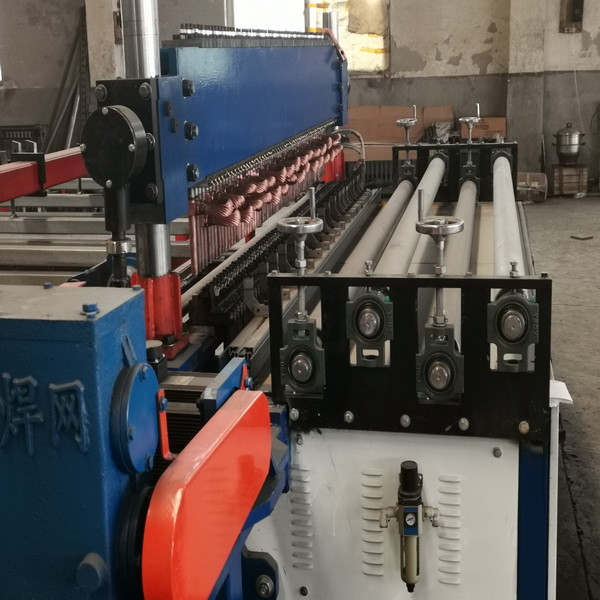

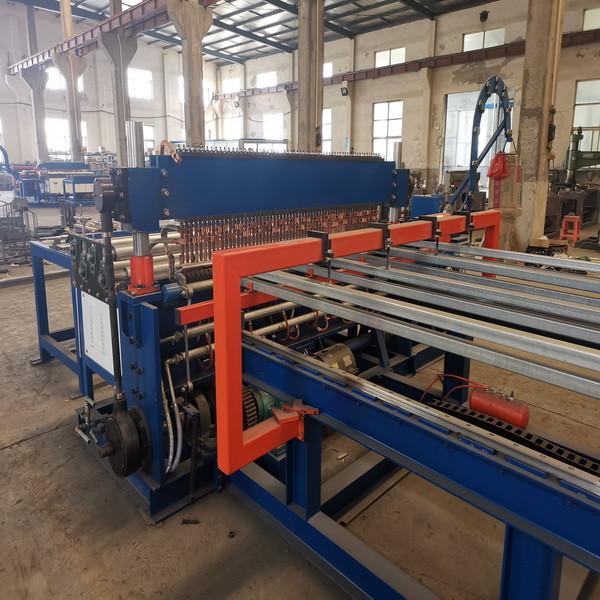

    Galvanized wire diameter rebar 7mm CNC spot welding machine is used for making panel mesh. The welded mesh panel welding equipment is our latest research and delelopment equipment to make welded mesh panel. We are professional manufacturer in welded mesh panel welding equipment for many years since 2010. We export welded mesh panel welding equipment to 30 countries. Clients are very satisfied with our machine and after sales service.The welded mesh panel welding equipment adopts CNC synchronous control technology, welding time and divided control welding time are composed of PLC digital programming system, the input panel is touch screen or keyboard, the operation is more intelligent and reasonable.The welded mesh panel welding equipment adopts one-step compaction and sub-welding.

    2. Technical parameter


    ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
    Weld width(mm)15002000250028003300
    Meshi trip(mm)Single trip 3000 and no limit on return
    Std trans.spacing>=25mm-stepless adjustable
    Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
    Std weld spots3141512732
    Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
    Weld speed(times/min50-7040-6040-6040-6040-60
    Trans materialStraight bar/rodStraight bar
    Long materialStraight bar/rod
    Control modePLC programming servo motor stepper
    Mesh diagonal error<=2
    Mesh overall error<=2
    Air pressure>=0.7
    Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


    3. Application area

    The galvanized wire diameter rebar 7mm CNC spot welding machine can be used to prevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry.

    4. Advantages

    a. Control software is based on Windows system.

    b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

    c. Intelligent and humanization.

    d. All the pneumatic components used are with world famous brand. For European customers, it is very easy to get the parts locally.

    e. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.
