    Huayang Dia 5mm CNC Spot Welding Machine CuCrZr Electrodes Animal Cage

    Ask Lasest Price
    Brand Name : Huayang
    Model Number : R-DHW
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Huayang Dia 5mm CNC Spot Welding Machine CuCrZr Electrodes Animal Cage

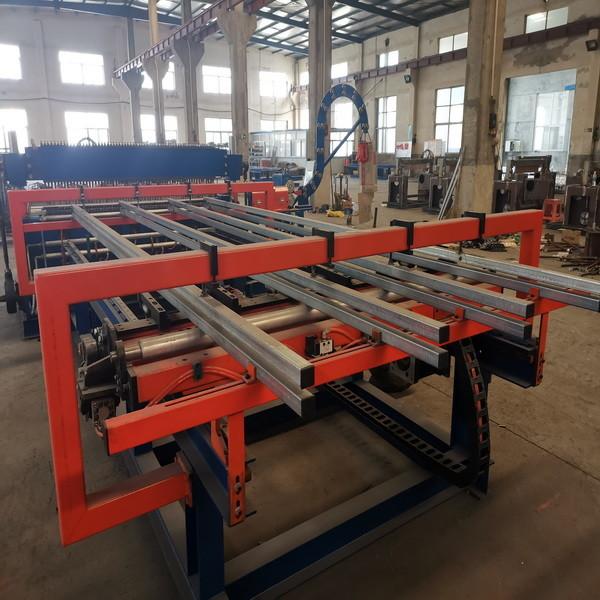

    Automatic Wire Diameter 5mm CNC Spot Welding Machine

    1. Product description

    Automatic wire diameter 5mm CNC spot welding machine is used for making panel mesh. Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc.

    2. Technical parameter


    ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
    Weld width(mm)15002000250028003300
    Meshi trip(mm)Single trip 3000 and no limit on return
    Std trans.spacing>=25mm-stepless adjustable
    Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
    Std weld spots3141512732
    Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
    Weld speed(times/min50-7040-6040-6040-6040-60
    Trans materialStraight bar/rodStraight bar
    Long materialStraight bar/rod
    Control modePLC programming servo motor stepper
    Mesh diagonal error<=2
    Mesh overall error<=2
    Air pressure>=0.7
    Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


    3. Application area

    The automatic wire diameter 5mm CNC spot welding machine can be used in coal mine roadway, concrete pavement, bridge deck, airport runway and construction.

    4. Advantages

    a. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

    b. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

    c. We can design the welded wire mesh machine as your requirement.

    d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.

    e. Upper and down electrodes material is CuCrZr, best quality for electrical conductivity, abrasion-proof and long use life.


    Huayang Dia 5mm CNC Spot Welding Machine CuCrZr Electrodes Animal Cage
