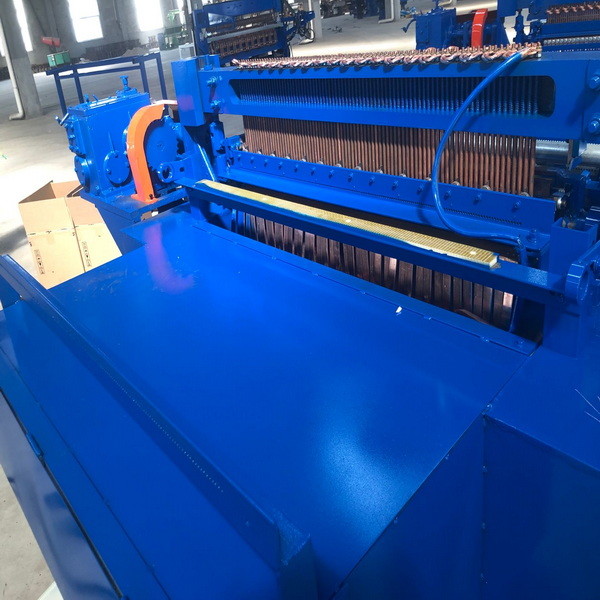

380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine

    Buy cheap 380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine from wholesalers

    Buy cheap 380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine from wholesalers
    • Buy cheap 380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine from wholesalers

    380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine

    Ask Lasest Price
    Brand Name : Huayang
    Model Number : R-DHW
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    380V Servo Weld Mesh Manufacturing Machine , 8ft Width Auto Welding Machine

    Eight Feet 380 Voltage Roll Mesh Welding Machine

    1. Product description


    Eight feet 380v voltage roll mesh welding machine is used for making wire mesh. Wire coils are mounted on dedicated pay-offs for Line wire feeding.Dedicated tension and missing wire control device is helping keep wires nicely separated and easy to control.Wires are then advanced by the second set of Servo – Motorized rollers, through the vertical straighteners, into the welding machine!


    2. Technical parameter


    ModelMesh widthMinimum mesh size (inch)Wire diameter(mm)Welding speed (rows/min)Roll mesh length (m)Other available mesh size (inch)
    R- DHW4 feet1/2x1/20.6-1.390-1201101/2x1, 1x1/2, 1x1, 2x2
    R- DHW4 feet1/2x1/20.8-1.680-901001/2x1, 1x1/2, 1x1, 2x2
    R- DHW4 feet1x10.6-1.390-1101101x2, 2x1, 2x2, 2x4
    R- DHW4 feet1x10.8-1.6

    90-110

    1001x2, 2x1, 2x2, 2x4
    R- DHW4 feet1x11.4-2.680-90801x2, 2x1, 2x2, 2x4

    3. Application area


    The eight feet 380v voltage roll mesh welding machine is for used in mining, petroleum, chemistry, food, medicine, machine manufacturing industry. It is used for machine protection for the above industries. The stainless steel wire mesh is even and constant. Welding spot is sturdy. The machinery property is stable, anti-corrosion perfomance is good.


    4. Advantages


    a. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.


    b. Line wire vertical straightening system to provide high quality.


    c. The raw material is suitable for black wire, galvanized wire or stainless steel wire.


    d. High and fast ROI (return on Investment)


    e. Electrode lift system to extend electrode life.
