Brand Name : | Huayang |
Model Number : | R-DHW |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | T/T |
Supply Ability : | 20 sets/month |
Delivery Time : | 30 days |
1. Product description
Automatic Four Feet 220V Weld Mesh Manufacturing Machine is used
for making wire mesh. The feature of the machine is saving
materials and high capacity. The button switches to start and stop
machine easily. The galvanized iron wire green roll mesh welding
machine can be quick and easy roll extraction from the machine.
2. Technical parameter
Model | Mesh width | Minimum mesh size (inch) | Wire diameter(mm) | Welding speed (rows/min) | Roll mesh length (m) | Other available mesh size (inch) |
R- DHW | 6 feet | 1/2x1/2 | 0.45-0.85 | 90-120 | 130 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.6-1.3 | 90-120 | 110 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1/2x1/2 | 0.8-1.6 | 80-90 | 100 | 1/2x1, 1x1/2, 1x1, 2x2 |
R- DHW | 6 feet | 1x1 | 0.45-0.85 | 90-120 | 130 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.6-1.3 | 90-110 | 110 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 0.8-1.6 | 90-110 | 100 | 1x2, 2x1, 2x2, 2x4 |
R- DHW | 6 feet | 1x1 | 1.4-2.6 | 80-90 | 80 | 1x2, 2x1, 2x2, 2x4 |
3. Application area
Automatic Four Feet 220V Weld Mesh Manufacturing Machine is widely used in concrete reinforcement, cages (chickens, dogs, farms, etc…), wire mesh fences, panels for construction, racks, platforms.
4. Advantages
a. Mesh pulling system adopts servo motor back and forward to
ensure the mesh opening accurately and can be adjusted freely
within a certain range.

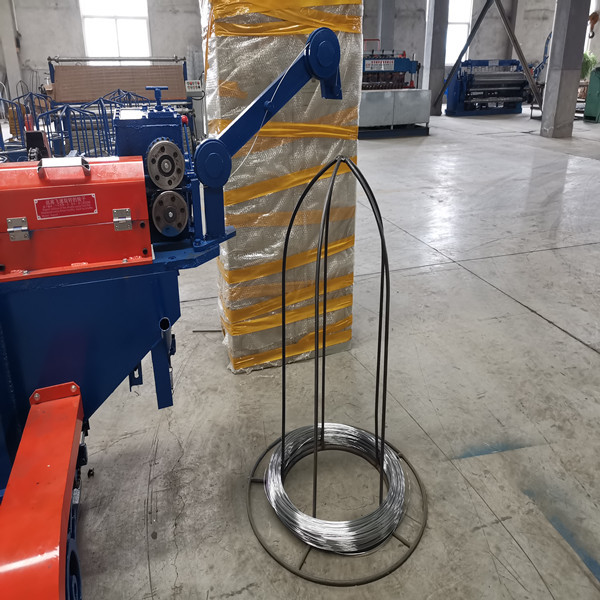

b. The line wire is fed from coils; the cross wire is pre-cut, fed
from hopper driven by step motor.
c. Finished products are both roll mesh.
![]() |
