    Straightening Wheels Funnel Method Mesh Panel Welding Machine Single Trip 3000mm

    Automatic Electric Galvanized Mesh Panel Welding Machine

    1. Product description

    Automatic electric galvanized mesh panel welding machine is used for making wire mesh. The system used large capacity storage device,and the weight of cross wire can reach 1 ton.Cross wire feeding automatically, accurate position. Line wire feeding system consists of straightening wheels and pressure rollers. The straightening wheel can make the wire mesh flat,the mesh hole precise and the diagonal error small. The function of the pressure roll is to make the whole wire mesh flat without distortion.

    2. Technical parameter


    ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
    Weld width(mm)15002000250028003300
    Meshi trip(mm)Single trip 3000 and no limit on return
    Std trans.spacing>=25mm-stepless adjustable
    Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
    Std weld spots3141512732
    Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
    Weld speed(times/min50-7040-6040-6040-6040-60
    Trans materialStraight bar/rodStraight bar
    Long materialStraight bar/rod
    Control modePLC programming servo motor stepper
    Mesh diagonal error<=2
    Mesh overall error<=2
    Air pressure>=0.7
    Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


    3. Application area

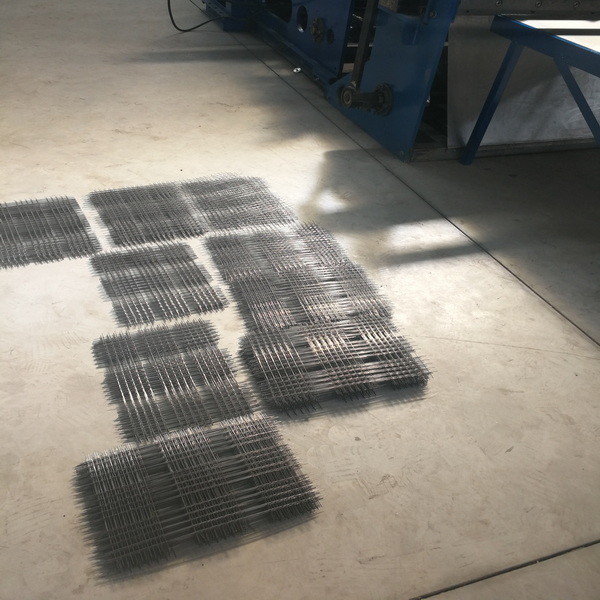

    The Automatic electric galvanized mesh panel welding machine extensively used for 1.5-3mm diameter wire mesh, used for light walls, titanium plate, small cages wire mesh.

    4. Advantages

    a. Using the lower-part electrode and wire putting device connected as a whole structure, the adjustment of the vertical line spacing of the mesh more convenient.

    b. Transverse reinforcement raw material storage frame with funnel method, you can store a lot of raw materials.

    c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

    d. Welding part can easily switch, which greatly improves the service life of machinery, maximum reduce the cost.


    e. Electrodes with cooling water, good for wire 3-8mm.
