    70times/Min Pneumatic Spot Welding Machine Low Carbon Steel Cylinder

    Ask Lasest Price
    Brand Name : Huayang
    Model Number : R-DHW
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 sets/month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    70times/Min Pneumatic Spot Welding Machine Low Carbon Steel Cylinder

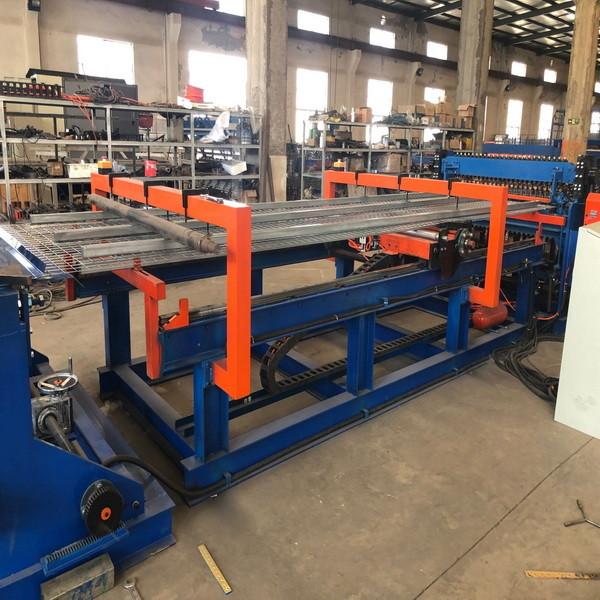

    Automatic Low Carbon Steel Pneumatic Spot Welding Machine

    1. Product description

    Automatic low carbon steel pneumatic spot welding machine is used for making wire mesh. The machine adopts synchronous and PLC control technique. The welding power comes from the spring. It is easily to control the welding pressure, more over ten times than the traditional hopper. Welding time and sub-control welding adopt Japan, Sony digital control system which can be input to touch screen control panel to adjust the mesh size, What’s more, the below electrodes installed water-cooling equipment, which reduce the loss and ensure welding quality.

    2. Technical parameter


    ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
    Weld width(mm)15002000250028003300
    Meshi trip(mm)Single trip 3000 and no limit on return
    Std trans.spacing>=25mm-stepless adjustable
    Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
    Std weld spots3141512732
    Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
    Weld speed(times/min50-7040-6040-6040-6040-60
    Trans materialStraight bar/rodStraight bar
    Long materialStraight bar/rod
    Control modePLC programming servo motor stepper
    Mesh diagonal error<=2
    Mesh overall error<=2
    Air pressure>=0.7
    Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


    3. Application area

    The automatic low carbon steel pneumatic spot welding machine can be used in in algriculture. The machine produce the wire mesh. The people can use the wire mesh to make animal cages. Such as: chicken cage, dog cage, rabbit cage, etc. It is easy operation and economical.

    4. Advantages

    a. The line wire is feeding by the servo motor ,pulling the wire net by the servo motor auto.


    b. Equipment to strengthen the damping process, effectively reducing noise.

    c. The greatest advantage is possible to adjust the distance of line wires at random on the same mesh panel.

    d. The welding wire diameter is able to be made to orders. The range of our mesh welding machine is from 0.3mm to 12mm. Material can be stainless steel wire, galvanized wire, plain steel bar, cold rolled rebar, hot rolled rebar.

    e. The wire mesh welding machine welding power comes from the cylinders. It's easy to control the welding pressure .
