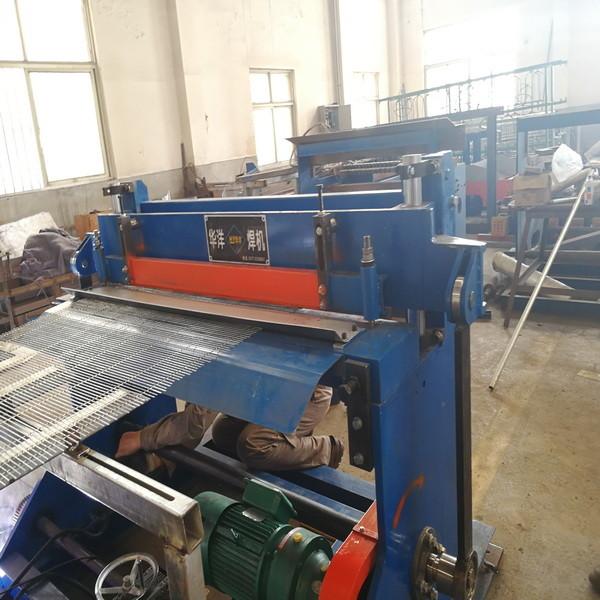

    Huayang Galvanized Wire CNC Spot Welding Machine Round Bar 15kw

    Galvanized Wire Orange CNC Spot Welding Machine

    1. Product description

    Galvanized wire orange CNC spot welding machine is used for making panel mesh. The final product obtained through semi-automatic horizontal or fully automatic vertical spoolers is wire in spools or in compact coil format with diameters that range from 4 mm to 16 mm, while the weight of the coils ranges from 2.5 tons to a maximum of 5 tons. The CRL cold-rolling lines are designed to produce smooth or ribbed cold-rolled steel wire for reinforcement or industrial applications.

    2. Technical parameter


    ModelHY-DHW-1500HY-DHW-2000HY-DHW-2500HY-DHW-2800HY-DHW-3300
    Weld width(mm)15002000250028003300
    Meshi trip(mm)Single trip 3000 and no limit on return
    Std trans.spacing>=25mm-stepless adjustable
    Std long.spacing>=50mm, and progressive increase by 50>=100mm, and increase by 100
    Std weld spots3141512732
    Wire diameter(mm)3.0-6.03.0-6.03.0-6.05.0-12.05.0-12.0
    Weld speed(times/min50-7040-6040-6040-6040-60
    Trans materialStraight bar/rodStraight bar
    Long materialStraight bar/rod
    Control modePLC programming servo motor stepper
    Mesh diagonal error<=2
    Mesh overall error<=2
    Air pressure>=0.7
    Weld materialCold drawn wire, galvanized wire, cold rolled ribbed steel


    3. Application area

    The galvanized wire orange CNC spot welding machine can be used in coal mine roadway, concrete pavement, bridge deck, airport runway and construction.

    4. Advantages

    a. PLC controlled. Easy to set and control. It makes this machine more intelligent and reasonable.

    b. The weft wire of wire mesh welding machine feeding from the multi hopper which capacity is more over ten times than the traditional hopper.

    c. We can design the welded wire mesh machine as your requirement.

    d. All the pneumatic components used are with world famous brand. For European customers, it is very easy to get the parts locally.

    e. This machine is compact in structure, easily to operate and with fully functions. It has lower cost, high efficiency, reliable working, low energy consumption advantages.
